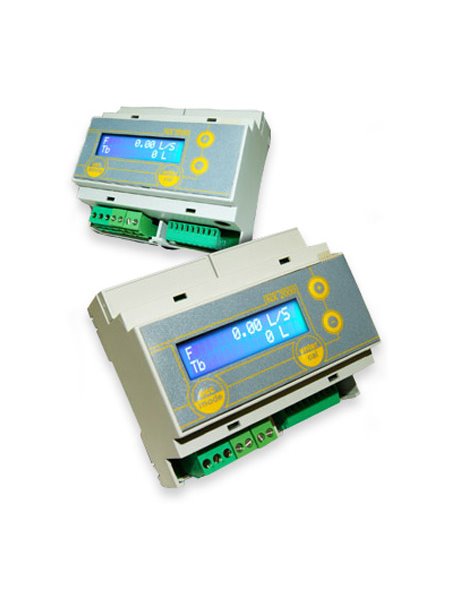

VOLTAGE INPUT (15÷30 VDC) for suspending the measurement via REMOTE CONTROL SYSTEM (HOLD) SELECTABLE MEASUREMENT SCALES using the programming menù, it is possible to select the available measurement scale to ensure operating versatility with a single instrument INSTRUMENT RECOGNISES THE BUFFER SOLUTION (pH and Redox) and completes the calibration suspending the dosage (HOLD) and showing the electrode’s efficiency in % MULTILINGUAL MENÚ, PASSWORD PROTECTION FOR SETTING MENÚ, QUALITY INDICATION OF MEASURIN PROBES DIGITAL DISPLAY WITH HIGH EFFICENCY BLUE LEDS with 2 lines of 16 digits per line, allows the conteporaneous visualization of 2 parameters: chemical measure and temperature DIN RAIL VERSION mode cal 6 modules
NX2000 SERIES RANGE pH - 0÷14,00 (accuracy 1%) Rx - ±1000 mV (accuracy 1%) CD - 10÷20,000 μS (accuracy 1%) low conductivity 0÷200 μS high conductivity 0÷50.000 μS probe K10 - 10÷2,000 μS (accuracy 1%) probe K5 - 20÷4,000 μS (accuracy 1%) probe K1 - 100÷20.000 μS (accuracy 1%) CL Potentiostatic - 0÷2 / 0÷5 / 0÷10 / 0÷20 / 0÷200 ppm FLOW - 0÷9.999.999 (segnale entrata input signal 0,5÷1.500 Hz) Batch function calculation of an established volume CL Amperometric - 0÷5 ppm
TEMPERATURE 0÷100 °C with PT100 (accuracy 1%)
CURRENT OUTPUT 0/4÷20 20÷4/0 mA (±2%) galvanic separation
POWER SUPPLY 100÷240 VAC 50/60 Hz
SET POINT 2 independent throught 10A 250V dry contact relay (resistance load)
